Description
titanium gravel bike uk Torus Ti-Gr Mk2 – Clee CyclesTitanium Gravel Bike Frame Our second evolution of our gravel frame For more infomation on our products and spec visit : Our Torus website If you are interested in reserving pre ordering a frame from our next order please send an email to mail@torusbicycles. co. uk or use our contact infomation at the bottom of the page to leave us a message 380mm a c fork 47mm offset Tyre clearance up to 35mm with mudguard M5 boss under seat stay bridge, and on chain

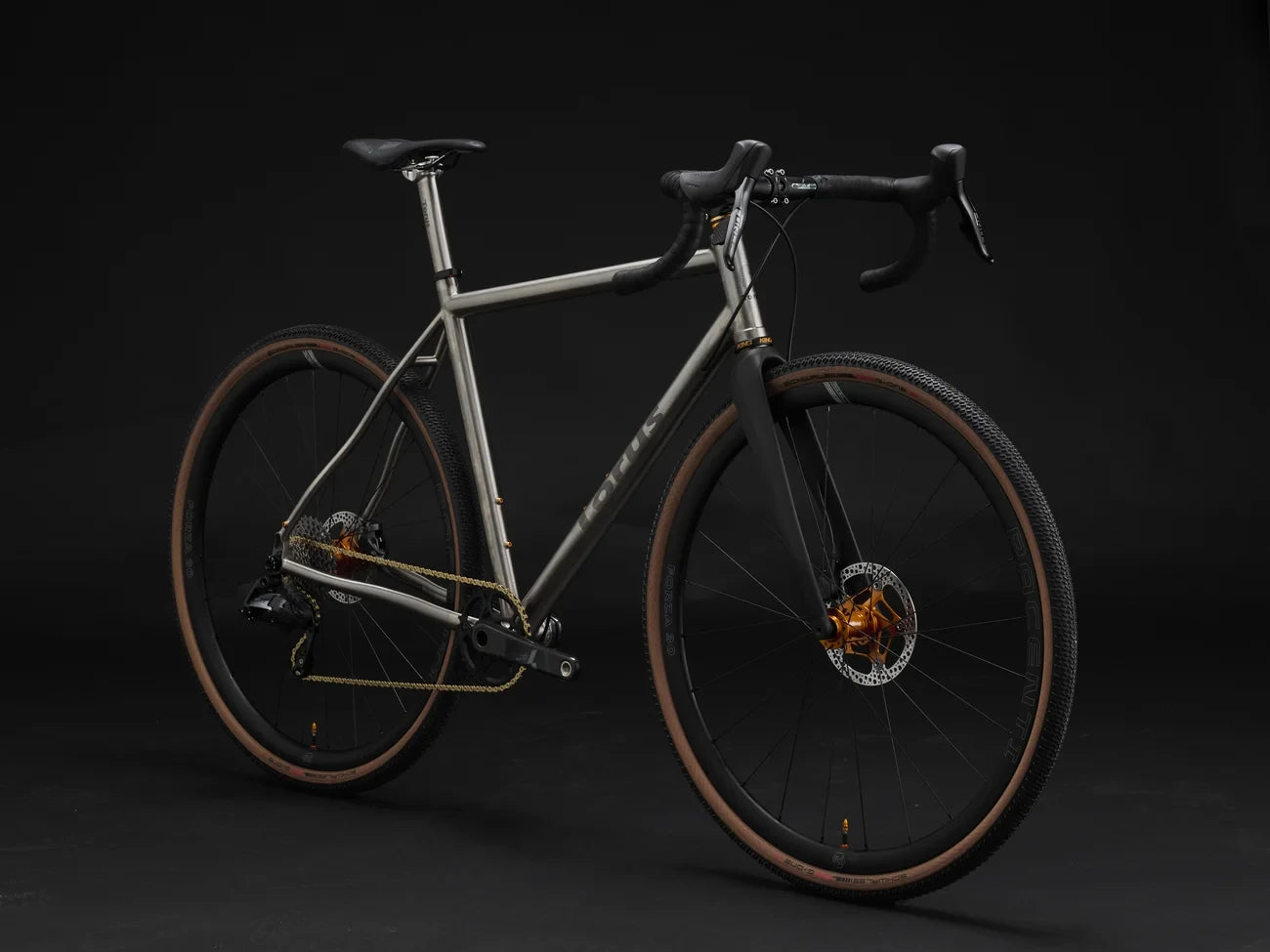

Titanium Gravel Bike Frame
Our second evolution of our gravel frame
For more infomation on our products and spec visit : Our Torus website
If you are interested in reserving/pre-ordering a frame from our next order please send an email to [email protected] or use our contact infomation at the bottom of the page to leave us a message
380mm a-c fork 47mm offset
Tyre clearance up to 35mm with mudguard
M5 boss under seat stay bridge, and on chain stay bridge
M5 mudguard mounts on rear
Internal brake hose route inside down tube and inside chain stay
Bottle mount on down tube and seat tube
44mm head tube. 16mm stack external lower headset cup - like the MTB frames
Bottom Bracket – 68mm
Headtube - 44mm
Brake mount – Flat mount 140mm
Tyre clearance – 45mm
Brake hose routing - Internal
Seat post size – 31.6mm
Seat tube diameter – 34.9mm
Rear dropout width -142mm
Mech hanger – UDH 12x142mm
Bottle cage mounts – On seatube and downtube
|
|
53cm Small |
55cm Medium |
57cm Large |
59cm XL |
|
Rider Height |
5' - 5'6" |
5'7" - 5'9" |
5'10" - 6'1" |
6'2" - 6'6" |
|
Reach |
380 |
400 |
420 |
440 |
|
Stack |
531 |
551 |
571 |
590 |
|
Top tube effective |
532 |
558 |
584 |
609 |
|
Head tube angle |
71 |
71 |
71 |
71 |
|
Head tube length |
110 |
130 |
150 |
170 |
|
Seat tube angle |
74 |
74 |
74 |
74 |
|
Seat tube length |
470 |
490 |
510 |
530 |
|
Fork length A-C |
380 |
380 |
380 |
380 |
|
BB drop |
70 |
70 |
70 |
70 |
|
Chainstay |
430 |
430 |
430 |
430 |
|
Chain line/ Chain ring |
47mm/48/31TT |
47mm/48/31TT |
47mm/48/31TT |
47mm/48/31TT |
|
Rear axle |
12x142mm |
12x142mm |
12x142mm |
12x142mm |
|
Stem |
70mm |
80mm |
90mm |
100mm |
